P(4/1)1X 快速排气阀

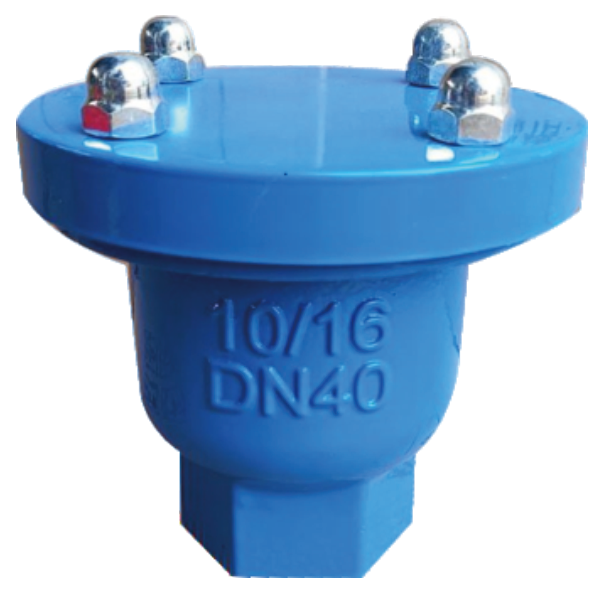

P(4/1)1X Quick Exhaust Valve

P(4/1)1X 快速排气阀

概述
This product is mainly composed of valve body, upper cover, valve stem, float ball and exhaust nozzle. It is used in small- diameter pipelines (pipe size DN50-200) to exhaust air from the pipeline, preventing air trapping and air resistance. In case of negative pressure in the pipe (e.g., when the water pump loses power), it automatically inhales air to protect the pipeline safety.

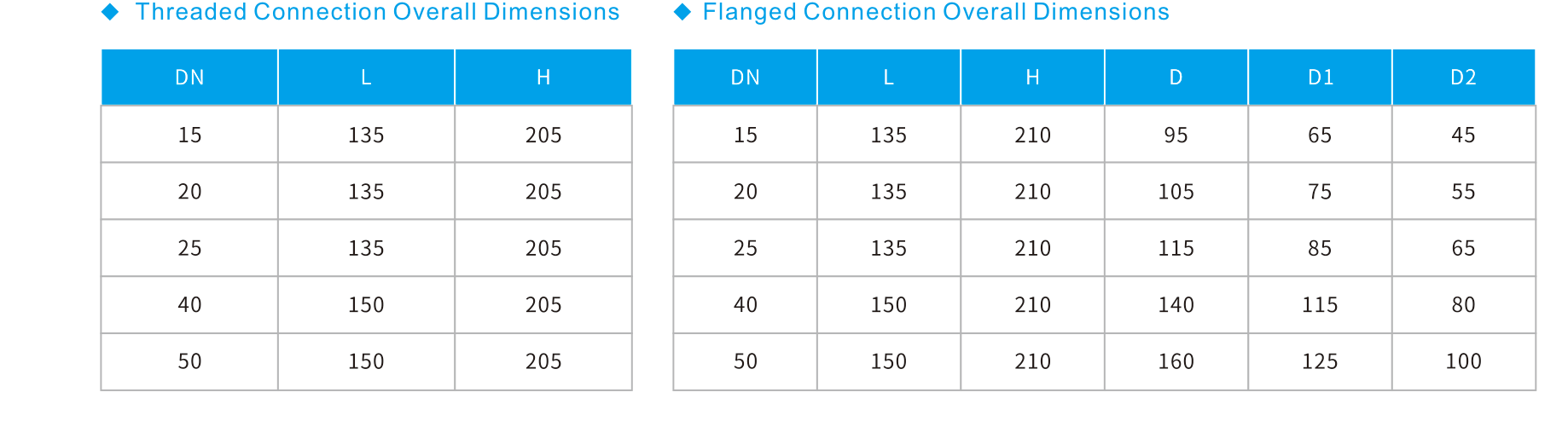

尺寸参数表
